Description
Main Specifications

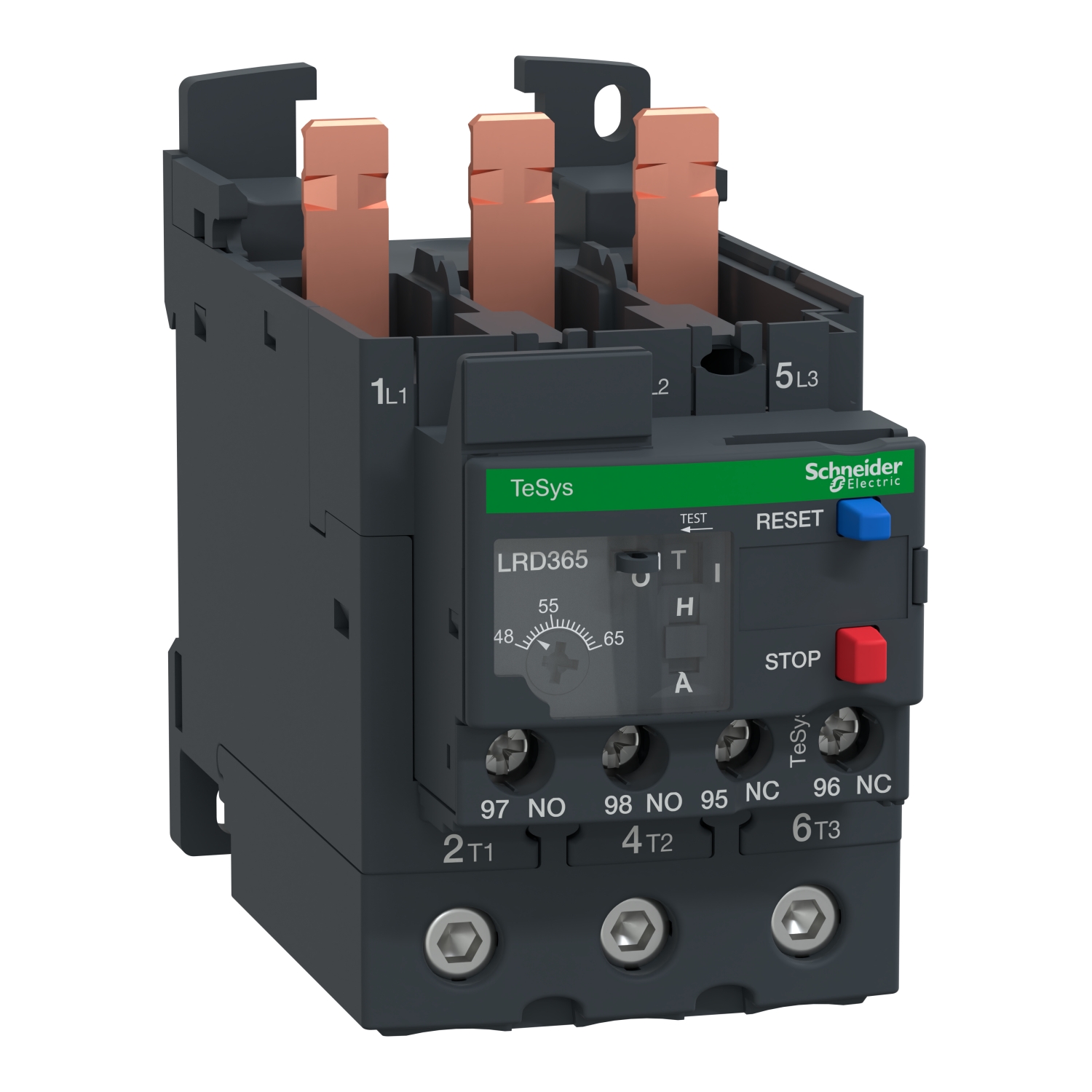

Product Range: TeSys Deca – TeSys LRD TeSys – TeSys Deca
Product or component type: differential thermal overload relay
Device Short Name: LRD
Contactor Application:
Utilization Category:
Poles Description:
[Ue] rated operational voltage:
[Ie] rated operational current:
[Uc] control circuit voltage:
[Ui] rated insulation voltage: power circuit: 600 V conforming to CSA – power circuit: 600 V conforming to UL
Device Application:
Network Type: AC – DC
Product Compatibility: LC1D50A – LC1D65A
Relay Application: motor protection
Thermal Overload Class: class 10A conforming to IEC 60947-4-1
Thermal Protection Adjustment Range: 48-65 A
